Posts tagged downtown
Highlands CBD Redevelopment Plan

The Borough of Highlands, located along Sandy Hook Bay and the Shrewsbury River, has a compact main street (Bay Avenue) with small-scale lots anchoring the downtown, ferry service to New York City, a substantial waterfront, and easy access to Atlantic Ocean beaches. However, nearly the entire downtown lies within the FEMA AE flood zone, making ground-floor retail  prohibitively expensive. Many properties were badly damaged by flooding from Hurricane Sandy in 2012, and few businesses have reopened. In 2018, the Borough overhauled the downtown zoning, hoping to spur more restaurants, retail, and activity through mixed-use development. However, onerous parking requirements and restrictive height and FAR limits, combined with stricter floodproofing requirements, continued to make it nearly impossible to build a mixed-use building with ground-floor retail. Most recent construction and renovations have been single-family homes with front garages, resulting in less pedestrian activity on downtown sidewalks.

Examples of recent home construction and renovations to place living spaces above the Design Flood Elevation, resulting in a growing “garagescape” along Bay Avenue, the retail spine of Highlands. Some homes have a more friendly appearance than others.

Example of a house with its living areas raised above Design Flood Elevation, with a friendly second floor porch that is linked to the public sidewalk with a prominent staircase.

Through a competitive bidding process, Highlands retained Phillips Preiss to determine if a redevelopment approach could be used to spur new investment across downtown. After careful analysis of existing zoning, built form, building heights, and patterns of recent construction and renovations, the firm suggested a series of dramatic changes. Parking ratios were reduced, FAR was removed as a factor, and maximum permitted building coverage was increased. Most significantly, the firm created an optional height bonus program for several overlay areas where larger-scale new construction could be added downtown without unduly impacting adjoining single-family areas. The two-tiered bonus program awards higher heights in exchange for features that contribute to active, inviting, downtown-style streetscapes, including attractive, landscaped front “pocket parks” or plazas to create “breathing room” along the narrow, constrained Bay Avenue sidewalks and active uses on a floodproofed “Lowest Floor” – either the ground floor or the second floor. The additional heights will allow for more residential units on upper floors, creating more foot traffic and helping support new restaurants and retail.

The bonus program requires that if the active use is provided on the second floor, over an open level of parking, a front porch or deck with a substantial staircase or a series of terraced ramps is required within the front setback to maintain an inviting connection to the public sidewalk. In addition, front setback areas must have porous paving and landscaping for infiltration as well as seating areas to foster activity. The top floor of buildings must be stepped back to help reduce the perceived height and bulk. The Plan was well received and unanimously adopted in May 2022.

Aerial view of downtown Highlands, showing the narrow lots and regular grid of pedestrian-friendly streets.

Downtown Montclair Development Impact Analysis

Client: Township of Montclair, NJ

Overview

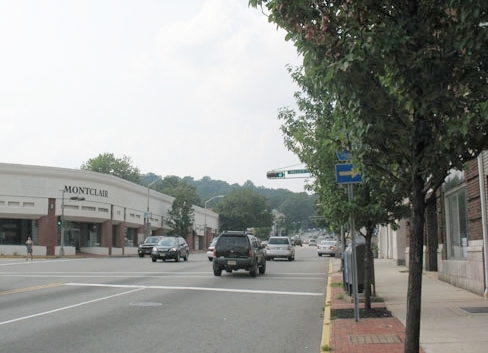

Phillips Preiss was retained by the Township of Montclair to assess the potential impacts of a major downtown mixed-use project. Notably, the development was proposed to include housing for approximately 1,000 students from a nearby state university, as well as retail, office, hotel and/or residential components. The Phillips Preiss study analyzed aesthetic, community, economic and traffic impacts and outlined a variety of possible benefits and challenges, which helped lay the groundwork for a productive discussion between the applicant, the Township and the greater Montclair community.

Results

The student housing project did not move forward, due in part to concerns about potential impacts uncovered by Phillips Preiss' study. The Township of Montclair subsequently hired Phillips Preiss to prepare a redevelopment investigation for the study area, as well as a redevelopment plan.

Epstein’s Downtown Area Rehabilitation Plan

Client: Town of Morristown, NJ

New mixed-use buildings face the Morristown Green. Upper floors are stepped back, per one of the design standards required in exchange for a height bonus.

New mixed-use buildings face the Morristown Green. Upper floors are stepped back, per one of the design standards required in exchange for a height bonus.

Courtyard and mid-block pedestrian connection behind the mixed-use building that faces the Morristown Green.

Courtyard and mid-block pedestrian connection behind the mixed-use building that faces the Morristown Green.

The new LEED-accredited office building for the Morristown Parking Authority.

The new LEED-accredited office building for the Morristown Parking Authority.

Overview

With its City Council and Planning Board at odds over approval of a major downtown redevelopment project, Phillips Preiss brokered a compromise and brought the project to a close on behalf of the Town of Morristown. Many Town leaders and residents were alarmed by the height and bulk of the project, and were also unhappy with its original design. The proposed project involved the complete redevelopment of several key, underutilized blocks abutting the Town Green, with new mixed-use development. Phillips Preiss worked with the Town to impose a series of design standards, including LEED certification, as a condition of approval in exchange for allowing building heights in excess of the current zoning.

Results

The first phase of the project, New Jersey’s first LEED Platinum building, has been completed. The plan won four statewide awards: the New Jersey Chapter of the American Planning Association’s Outstanding Smart Growth Plan, the New Jersey Planning Officials Award for Innovative Design, Downtown New Jersey’s Excellence in Downtown Award and New Jersey Future’s Smart Growth Award for Creative Downtown Redevelopment Strategy.

Vision Plan for Downtown Woodbridge

Client: Township of Woodbridge, NJ

Street section redesign for Main Street, Woodbridge, adding bicycle lanes, street trees that will grow to a taller height than the current trees, and wider sidewalks with bulb-outs.

Street section redesign for Main Street, Woodbridge, adding bicycle lanes, street trees that will grow to a taller height than the current trees, and wider sidewalks with bulb-outs.

Main Street, Woodbridge

Main Street, Woodbridge

The creek-side park in Woodbridge

The creek-side park in Woodbridge

Overview

Downtown Vision Plan for downtown Woodbridge, NJ. The town has a nearly continuous streetwall of retail stores extending for several blocks, a beautiful creek-front park, and a train station providing direct service into Manhattan. However, the downtown has little foot traffic. While downtown has a large parking supply, it is not allocated or managed efficiently. The design of the streets and private property frontages and facades does not contribute to creating an interesting and intriguing environment for pedestrians. Several large parcels with low-intensity development offered opportunity sites for infill and intensification. Phillips Preiss developed a Vision Plan that spells out a wide range of short- and long-term improvements that would help bring more residents downtown, transform the downtown into a dining destination, and create attractive public spaces to gather and linger.
